Specially Designed for Diesel Exhaust Fluid (DEF) Compatibility

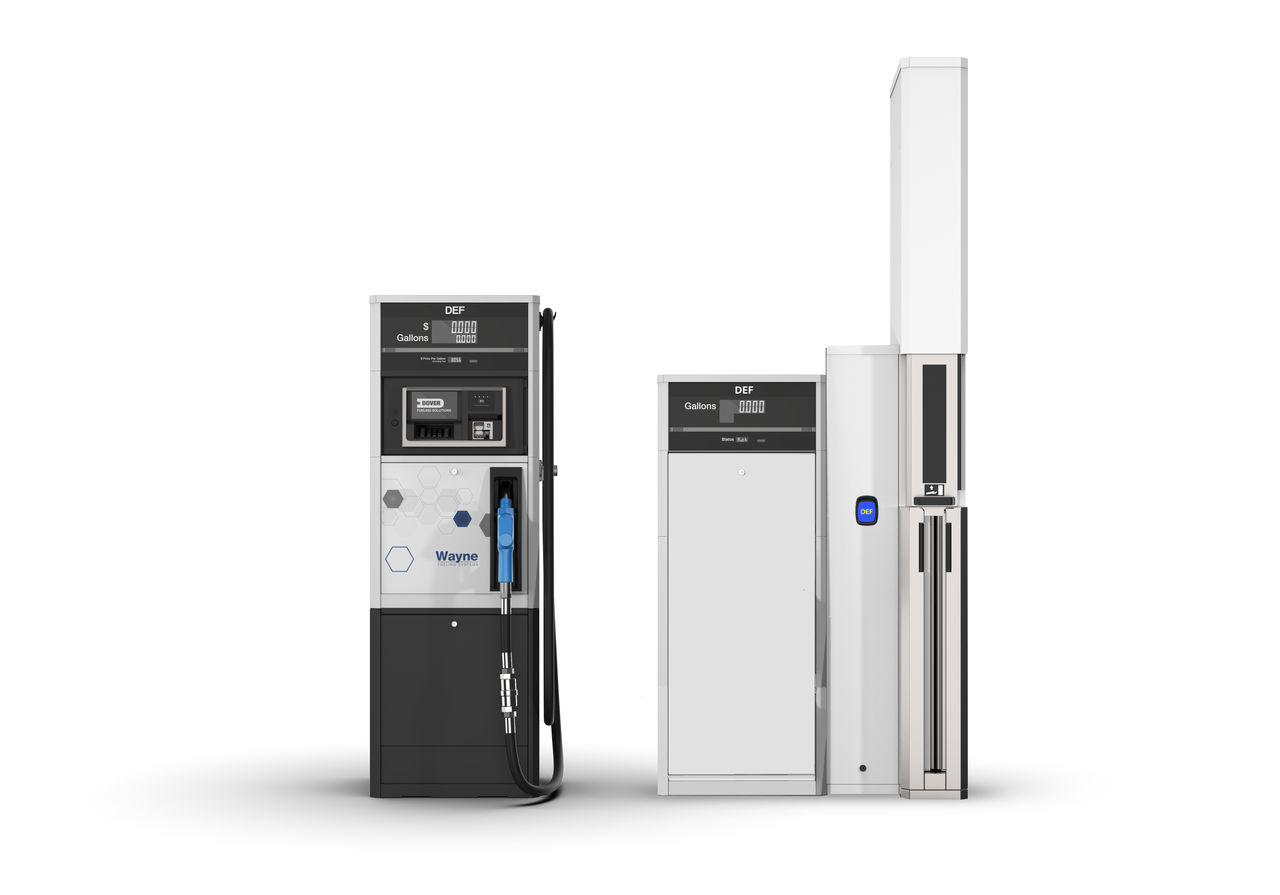

The Wayne Select™ DEF dispensers allow bulk DEF filling to be easily added to existing diesel islands. These single-sided, standalone dispensers can help speed vehicle refueling by allowing the separate diesel and DEF dispensers to operate simultaneously. High-grade internal components prevent DEF contamination and help protect exhaust systems from the harm that can come from an impure product.
High Quality, User-Friendly Dispensers
- Wayne Select™ DEF dispensers use a patent-pending heated hose and nozzle enclosurewith automatic door operation for easy access
- The user-friendly hose is tension-free for a six-foot stretch, and has an automatically retractable 12-foot total reach. The hose and nozzle doors that protect components and DEF product in cold weather can be locked in the open position to allow easy access in warmer weather
Integrates Into Your Existing Operation
- The same electronics interface as found in our fleet fueling dispensers allows seamless integration into your operation. Our narrow 40-inchwide DEF dispensers install easily onto existing diesel fuel islands andcan be used with above ground or underground tanks
- DEF-compatible hydraulics help ensure DEF purity
- Innovative hose handling provides user-friendly operation
- Heated nozzle and hose cabinet keeps DEF from freezing during cold weather
- Remains accurate during low flow metering
Proven Technology Helps Ensure DEF Quality
- Special DEF-compatible hydraulics with internal 5 micron filter, proven during five years of field experience in Europe, help ensure DEF quality
- Heated and insulated cabinets allow installation anywhere at your fueling site without the need for additional temperature-controlled enclosures
- All components, including hose and nozzle are heated to keep the DEF from freezing
- Thermostatically-controlled heater only runs as needed to limit operational costs.
- Self-closing doors help make sure the nozzle and hose stay heated and help eliminate concerns that doors will be left open
Wayne® Electronics
- Wayne iGEM™ electronics used in Wayne® petroleum dispensers
- Weights & Measures sealable for resale applications
- Standard Wayne current loop interface for connection to fleet control systems
Optional Features
- Optional pulse output interface for simple interface alternative for fleet control systems
- Right or left side hose cabinet allows easy hose maintenance with adjacentplacement of above ground tanks. Right hand standard
- Heater-less option for warm weather climates
Easy-to-use Hose and Nozzle
- Hose doors automatically open when the nozzle door is lifted, providing open access to the environmentally protected nozzle and hose
- Clear window in nozzle door makes nozzle location easily identifiable
- User-friendly hose configuration provides the first six feet of hose reach tension-free
- Retractable hose provides 12 feet of total hose reach to easily fill tanks that are not lined up with the dispenser
- Retraction device automatically returns extended hose back into the cabinet
- Nozzle and hose doors can be locked in the open position in warmer weather for easy access
- Free-hanging hose allows plenty of space for hose accessories such as breakaways
- Heavy duty hose doors are recessed and the narrow opening helps protect against abuse
- Rollers on the hose opening ease hose handling and help protect from wear
